应用领域
金属材料元素含量测试是金属冶炼、铸造、加工以及机械行业的研发、生产控制、质量检验等相关工作的传统测试项目。
天瑞仪器直读光谱仪广泛应用于钢铁、有色金属材料元素含量分析,可快速、精确、稳定、同时测试几十种分析元素,满足工业研发、工艺控制、进料检验、产品分选等多方面的需求。
天瑞仪器直读光谱仪测试金属材料元素含量便捷、环保、低成本,使研发、生产的过程和质量更可控,帮助用户提升产品的技术、质量水平;同时加速相关流程,为用户创遗明显的经济效益和环保效益。
天瑞仪器光谱仪厂家
直读光谱仪已成为衡量企业技术和质量水平的标志性设备。
产品说明、技术参数及配置

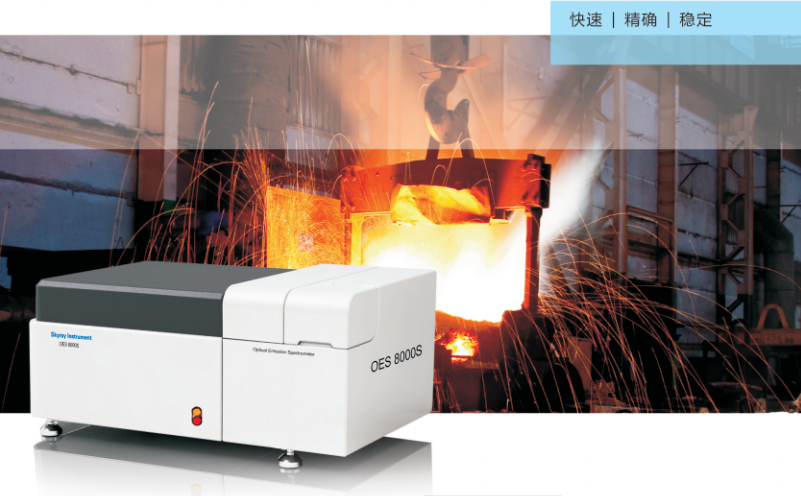

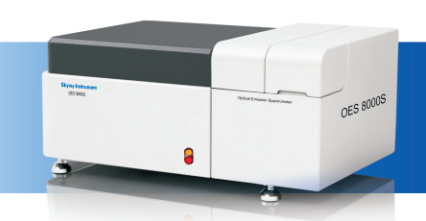

直读光谱仪OES8000S采用CCD检测器全谱测试技术,可测试覆盖波长范围内的所有谱线，配置和补充测试基体、通道、分析程序极为方便。仪器体积小巧，方便维护和实验室放置。OES8000S是全面测试钢铁和有色金属材料元素的通用型仪器。
全谱分析技术，方便配置更多基体和元素，方便在用户现场补充配置
仪器体积小巧，对实验室空间要求低
全天候工作，具有优异的稳定性和可靠性
样品测试速度快，单次测试过程少于30秒
仪器使用和维护简单、方便，对人员专业要求低
原厂安装分析程序，测试数据精确，适用合金牌号齐全
配置标准化样品可对仪器进行周期性校正
不使用化学试剂，测试过程安全、环保
分光室设计
帕邢-龙格结构,罗兰圆直径400mm
波长范围135 – 680nm
像素分辨率10pm
恒温35℃±0.1℃
特殊材质铸造，保证光室形变小
凹面光栅
刻线密度2400l/mm
一级光谱线色散率：1.04 nm/mm
检测器
高性能线阵CCD
分析时间
依样品种类而不同，一般少于30秒
激发光源
高能量等离子火花光源技术
高能预燃技术 (HEPS)
频率100-1000Hz
电流1-80A
激发台
3mm样品台分析间隙
喷射电极技术
无待机流量，低氩气消耗
尺寸和重量
高435mm 长900 mm 宽600 mm
120 kg
功率
最大功率1500W
待机功率70W
工作条件
工作温度：15-30℃
相对湿度：≤70%
电 源：220±5V，单相50Hz，接地电阻<1Ω
实验室无震动、粉尘、强电磁干扰、强气流、腐蚀性气体
辅助设备
高纯氩气——纯度99.999%以上
交流参数稳压电源——5KVA
光谱磨样机——用于钢铁、镍合金等样品
小型车床——用于铝、铜、锌、镁合金等样品
空调——依实验室面积配置匹配功率
技术优势
全谱检测全面测试各种金属和元素
基于CCD检测器全谱测试技术，全面测试各种金属中元素的谱线，方便实现多基体、多元素的测试。
配置和补充测试基体、通道、分析程序极为方便，方便交货后在客户处补充测试元素、分析程序。
专业的测试方案
长期测试技术服务的积淀，天瑞仪器为钢铁、有色金属材料分析用户提供成熟的测试方案。
测试方案采用针对材料元素含量分类的分析程序，满足用户各类常见测试需求。
分析程序由原厂采用国际、国家标准样品校准，经专业仪器软件拟合、校正。
用户只需采用原厂配置少量标准化样品即可完成日常维护，不需购买大量制作分析程序的标准样品。
国际知名供应商提供核心部件
光谱色散元件——光栅由德国Zeiss制造，保证优异的光谱分辨能力
光谱检测器——高性能CCD由日本滨松Hamamatsu制造，确保谱线检测灵敏、低噪声
光学镜片——德国Zeiss制造，光纤——美国Agilent制造
光室真空系统
光室真空腔体经精密设计和加工，密闭性能优异，为光路提供优质的高真空环境。
因此真空泵启动时间和次数极少，电力消耗极少，更好保持光室清洁。
优秀的光室恒温系统
光室恒温腔体内配置反馈式加热装置和高效隔温层，有效保证光室内恒温。
由此抑制温度变化下机械件尺寸微弱变化导致的光路漂移。同时光电器件工作在恒温环境有助于性能的稳定。
天瑞仪器光谱仪厂家

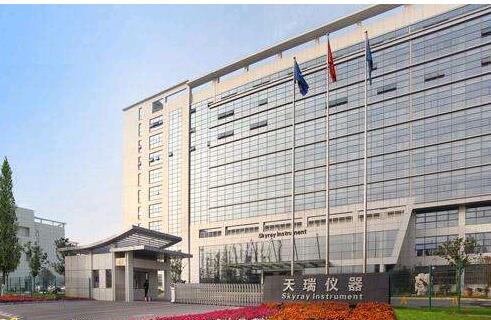

天瑞仪器介绍
