Product description, technical parameters and configuration
Introduction of instruments

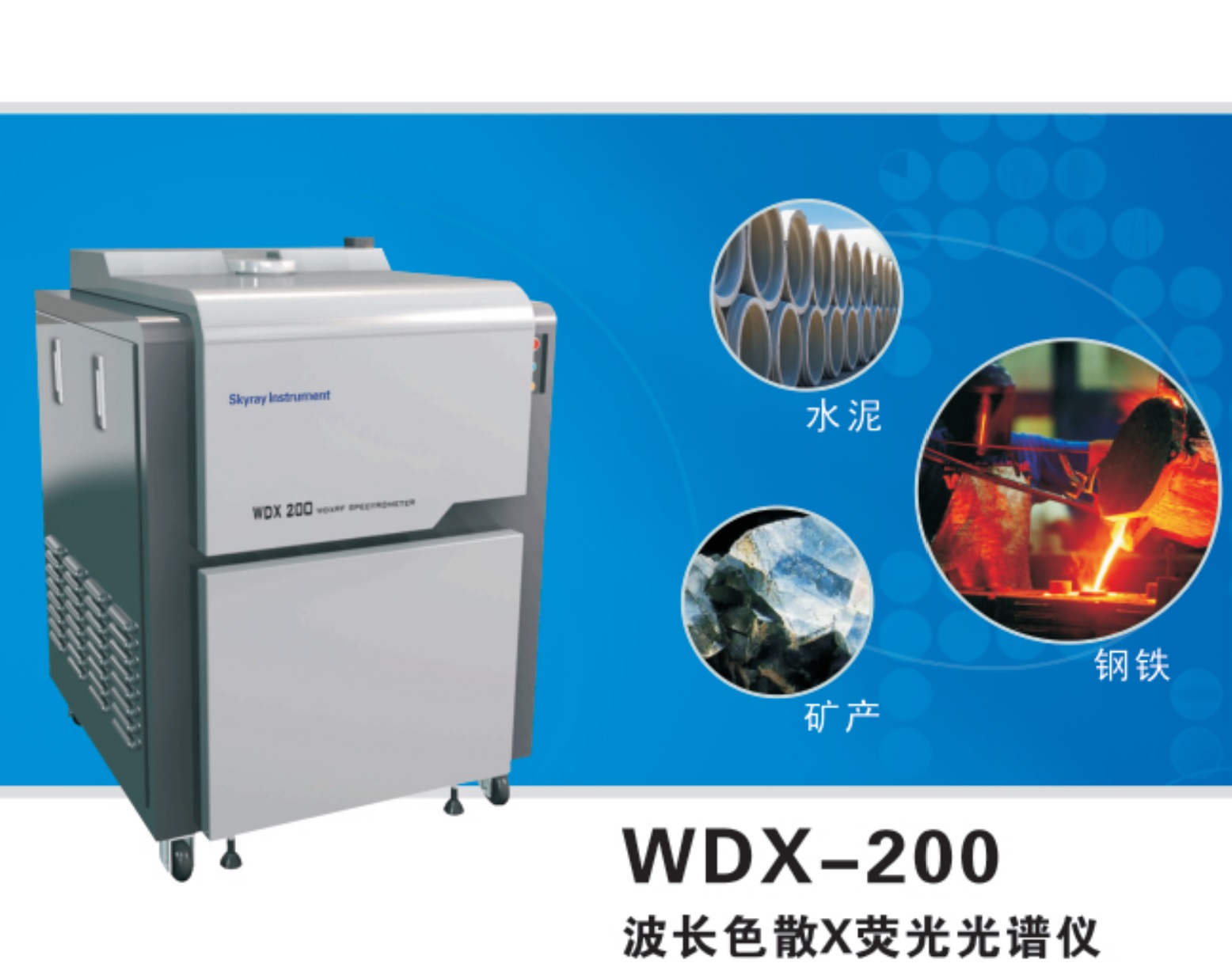

The WDX-200 compact multichannel X ray fluorescence spectrometer can be configured with 10 fixed light channels, and 10 elements can be analyzed simultaneously. Any ten elements that can be configured from Na to U according to the user's application requirements. The instrument can be widely used in cement, iron and steel, powder metallurgy, coal, petroleum, kaolin, glass, refractory, environmental protection and other industries. It is an ideal choice for the quality control of large and medium-sized enterprises.
Performance characteristics
Powder samples or block samples are fast and non damaged.
The multi-channel high-speed MCA is used to detect the peaks of each element in parallel. It is not only convenient for debugging instruments and fault diagnosis, but also conducive to improving the stability of instruments.
Technical indicators
Model: WDX-200
Temperature control precision of constant temperature room: set value of + 0.1 C.
Category of analysis elements: any ten elements from Na to U.
Analytical methods: empirical coefficient method and theoretical alpha coefficient method.
AC 220V power supply equipment: 1KVA AC purification voltage regulator current.
High voltage power supply: 200W (50KV4mA).
Tube pressure flow 12 hour stability: better than 0.05%.
Vacuum pump: two to 220V, 2 liters.
Industrial control microcomputer: industrial control 104 microcomputer.
Analysis accuracy: sigma n-1 (24 hours, percentage content) is less than 0.05%.
Single sample measurement time (including sample evacuation time) is less than 3~5 minutes.
X ray tube: Varian 400W thin beryllium window end window X ray tube, Rh target (Pd target optional).
Detector: gas to gas ratio detector + closed proportional detector, 10 channels and 1024 independent pulse height analyzers.
Vacuum system: independent pumping station structure, easy to maintain.
The highest degree of vacuum in the measuring room: lower than 5Pa.
Gas flow system: high precision gas density device with pressure stability of + 0.003KPa.
Analysis software: two quantitative analysis methods are prepared with empirical coefficient method and theoretical alpha coefficient method. Using full spectrum detection technology, the real-time tracking and correction of spectrum lines are realized. Thus the reproducibility and long-term stability of quantitative analysis are greatly improved, and the visual basis of the working state of diagnostic instruments is also provided. Perfect self diagnosis measures. Built in RS-232 serial communication protocol, TCP/IP protocol shares data with DCS or QCS system.
application area
Building materials (cement, glass, ceramics)
Metallurgy (iron and steel, nonferrous metals)
Petroleum (trace elements S, Pb, etc.)
chemical industry
Geological mining
Commodity inspection
Quality testing
Examination of trace elements in human body
