FT-IR 6600傅立叶变换红外光谱仪
工作原理
FT-IR 6600傅立叶变换红外光谱仪是利用干涉仪干涉调频的工作原理,将光源发出的信号以干涉图的形式送往计算机进行Fourier变换的数学处理,最后将干涉图还原成光谱图。主要部件包括:陶瓷光源、Michelson干涉仪、检测器、计算机和记录仪。

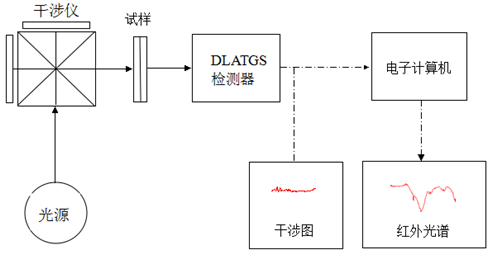

图1 傅立叶变换红外光谱仪工作原理示意图

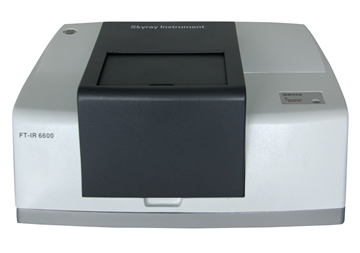

图2 傅立叶变换红外光谱仪FT-IR 6600外观图
产品特点
智能操作软件
● 智能的人机交互设计,易于操作;
● 可供选择的激光频率校正模式;
● 独到的数据采集预览全程监控模式;
● 拥有系列专业红外谱库及用户自定义谱库功能。
高可靠性的系统
● 采用高品质的长寿命陶瓷光源,发光效率高达80%;
● 光学部件采用高精密金刚石车床加工,具有较高的一致性和稳定性;
● 密封型干涉仪设计,采用进口镀金角锥反射镜,提供极高的反射率和角度精确度;
● 高灵敏度的进口DLATGS接收器;
● 高效防潮能力,可视窗口便于观察分子筛;
● 对针定位安装方式,无需调整。
人性化设计
● 超大样品仓设计,方便扩展各种红外附件;
● 推拉式样品仓门设计,减小外界空气对实验的干扰;
● 模块化设计,布局紧凑,小巧轻便,易于维护。
规格参数
光谱范围:7800~350 cm-1
分辨率:优于1.0 cm-1
100%τ线倾斜范围:优于0.5τ%(2200~1900cm-1 )
信噪比:15000:1 (P-P值,4cm-1,一分钟扫描)
分束器:KBr基片镀锗
光源: 高能量、高效率、长寿命陶瓷光源
干涉仪:30度入射角Michelson干涉仪
接收器:带有防潮膜的高灵敏度DLATGS接收器
尺寸:450mm×350mm×235 mm
重量:14.2 Kg
数据传输接口:USB2.0
支持系统:Windows XP、Windows Vista、Windows 7、Windows 8

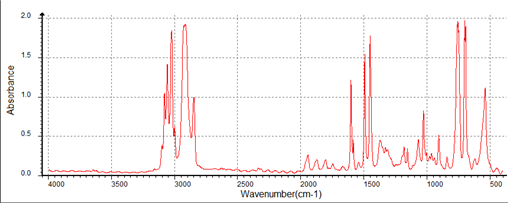

实测图谱:
相关附件
压片机
常规压片附件
压片模具
直径13mm,可压溴化钾等粉末
玛瑙研钵
天然一级品玛瑙,用于把固体样品研碎或使固体样品混合均匀
红外烤箱
温控范围:70℃~250℃,用于烘烤干燥剂,KBr及样品
液体池
透过范围2.5μm~25μm
衰减全反射(ATR)采样附件
ZnSe晶体
